Capacitor Battery Spot Welder, 11.6KW Battery Welding Equipment, 3-in-1 Auto & Manual & Foot Pedal Three Modes Welding for 18650s Lithium Battery Pack Building with Foot Pedal

★11.6 kW cordless welding machine 801B Spot Welding machine 18650s 16430 14500 Battery Spot part.Suitable for all cylindrical batteries with stainless steel positive and negative electrodes.▶Specification:Item Type: Pulse Welding MachineModel: 801BMaterial: Aluminum AlloyPlug Input Voltage: AC100-240V, 50 60HZMaximum pulse output power: 11.6KWPeak welding energy: 116JCapacitor storage voltage: 5.8VPulse time: 10ms (max)Energy level adjustment function: 0~99TFunction key control: Dual keys73SA spot welding thickness (nickel plating/stainless steel/iron sheet): ≤0.25~0.3mm73SA spot welding thickness (pure nickel): ≤0.25mmMobile welding pen spot welding thickness (nickel plating/stainless steel/iron sheet): ≤0.2~ 0.25mmSpot welding thickness (pure nickel): ≤0.25mmCharging start-up time (with dedicated adapters): 20~30minAdapters parameters: 15V/2A(max)Setting memory function: Reset default 25TMobile spot welding pen configuration type: 70BN integrated typeTrigger Mode: Automatic Trigger AT, Foot Trigger Welding Mode: Rocker Arm Push Down Spot Welding, Moving Spot S-73SA rocker arm downward pressure spot welding function: SupportedMobile spot welding pen function: SupportedMT wired foot pedal controlled spot welding: SupportedAT induction controlled spot welding: SupportedDimensions: 67x176x126mmWeight: 2kg▶Package List:1 x Host1 x Host Base1 x Six Knot Clamp1 x Wire Controlled Foot Switch1 x Power Adapters1 x 70BN Mobile Spot Welding Pen1 x Rocker Arm Push Down Welding Tool4 x Rocker Arm Push Down Solder Pin2 x Spot Welding Pen Needle1 x Push Down Welding Tool Rocker Arm1 x Wrench100 x Nickel Plated Steel Sheet1 x User Manual

• 【Wide Application】: This spot welder can be used to weld nickel-plated materials up to 0.35 mm thick and pure nickel up to 0.2 mm thick, and is suitable for all types of battery packs, hardware, and electronic components. It is widely used in battery pack production and assembly, mobile phone and digital product manufacturing and maintenance, small hardware component welding, and other fields.

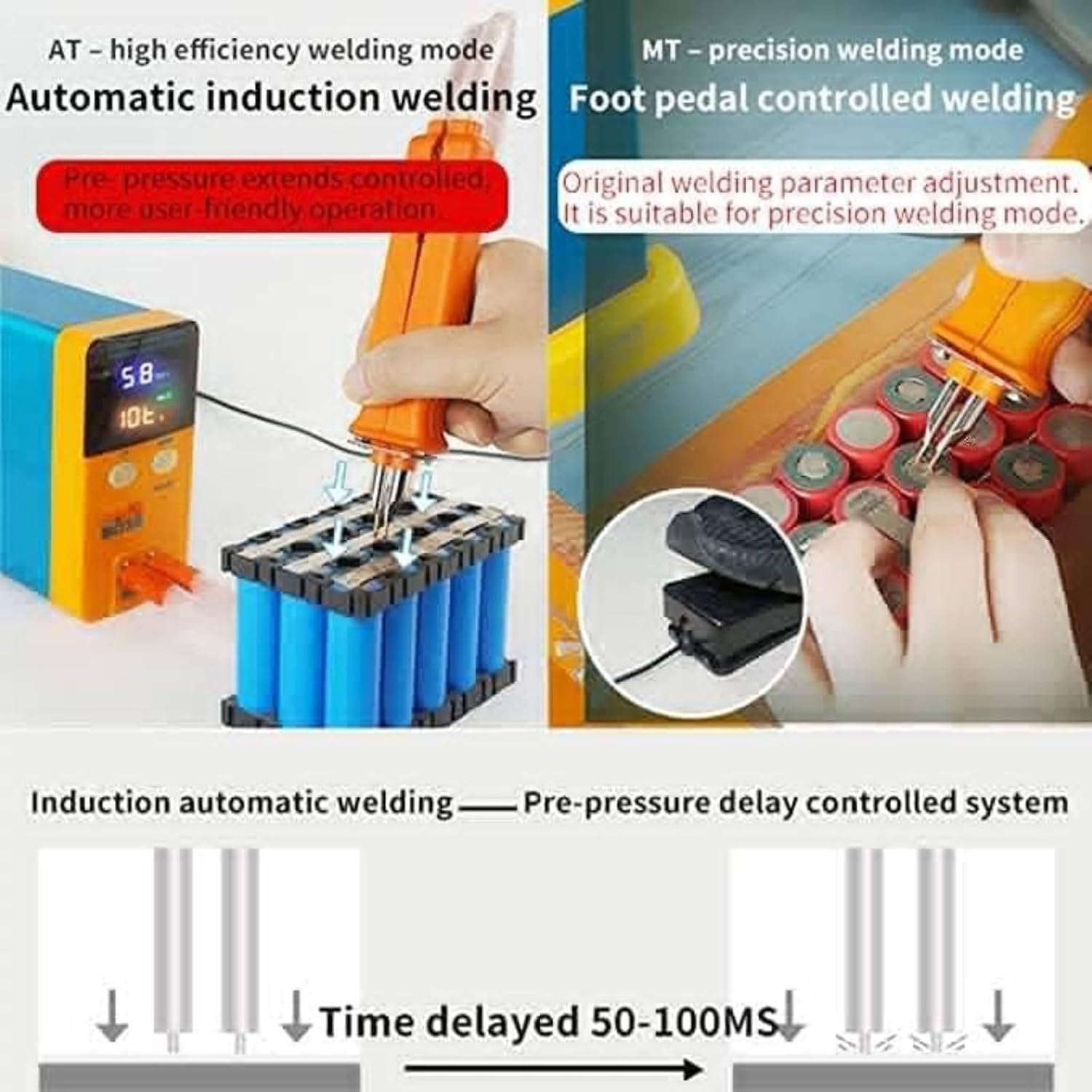

• 【Multiple Welding Modes】: The spot welder is equipped with two types of welding tools: a fixed, downward-press welding head and a movable welding rod. It also features two operating modes: automatic trigger (AT) spot welding and foot-operated (MT) spot welding, which can meet your various work requirements.
• 【Stable Power】: This battery-powered spot welder has a maximum welding power of 11.6kW and is equipped with two supercapacitors for energy storage, which can provide an instantaneous current of up to 2000A. This ensures stable and efficient power, resulting in more reliable welding. The spot welder allows you to adjust the output power (0-99t) using the adjustment knob to effectively control welding accuracy.
• 【Adjustable Power】: This energy-storing spot welder is small in size and lightweight, weighing only 3kg, making it easy to carry. You can monitor the welding process via the LED display and use the adjustment knob to adjust the welding power, welding current, and other parameters. Operations is simple and convenient.
• 【Package List】: The battery-powered spot welder comes equipped with a fixed welding head, a welding spindle, a foot pedal, a battery holder, a welding base, and 50 nickel washers. It also includes a set of spare welding tips that you can replace and reuse.
